DESCRIPTION:

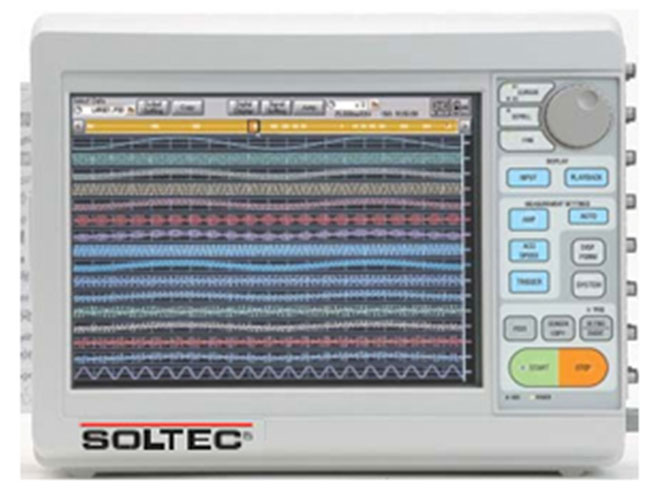

TA220-2800 Data Acquisition Recorders are unique portable designs offering
up to 32-channels of simultaneously sampled data collection, isolated channel-to-channel inputs, simple user operation, quick set-up, convenient color display of data, and a built-in high resolution thermal chart printer. Graphical set-up and signal waveforms are brilliantly displayed on a large, color LCD touch screen. A full range of plug-in modules condition signals for processing in various measuring modes including HDD Recording (for long term recording on a built-in 40GBHDD), Memory Recording (captures high speed transients/events), and Real Time Recording (like a pen recorder). These units are ideal for Maintenance, Production, Quality, and R&D applications.
FEATRES:
Large Color Screen Display:
A large 12.1" full color LCD touch screen displays set-up information and acquired data in real time or from memory. View before print or print while viewing data.
Direct Sensor Input
Sensors may be directly connected to the wide selection of plug-in signal conditioning amplifiers to measure AC/DC Voltage, AC/DC Strain, Temperature, Vibration, Pressure, Rotation Pulses, Frequency, etc.
Unique Pen Recorder Mode
Clear graphic, touch to set, amplifier control images eliminate complicated recorder setup. Displayed data signals appear to originate from graphic writing pen nib image while data is recording.
Long-term Recording
A built-in 40GB HDD provides long-term, high speed data recording for over 120 days on 16-channels with a 10mS simultaneous sampling rate! (60 days on 32 Channels)!
Enhanced Ease of Stored Data Access
Finding and displaying recorded data has never been easier. Many search features for finding specific data points within a large data file are included. A Thumbnail Bar displays all recorded channel data, while a Jump search function finds max/min points, time, etc
Standard LAN & USB Ports
LAN (100BASE-T) for data communication and USB for external storage devices (MO/USB memories) are standard interfaces
Built-in Chart Printer
A high resolution, thermal array printer with wide chart paper allows high-speed real time chart printing at 100mm/sec or prints stored files, and portions thereof, on demand
|
